Hiab Hana Co., Ltd.
Hiab started to produce hydraulic knuckle cranes already back in the forties after inventing the hydraulic crane in 1944. Special HIAB Sea Crane development and supply started and since then have been used in demanding applications like lifting the space capsules after landing from the ocean already in the beginning of the Sixties.
Wide application alternatives
Coast guard vessels, work boats, tugs, supply ships, oil drilling platforms, support vessels, sub sea trenchers, ice breakers, dredgers, barges, research vessels, lighthouse service ships, fire fighting and oil pollution recovery vessels, cruise ships, navy ships, fishing boats, piers etc... you name it... HIAB sea Crane will provide the optimal solution for lifting.
Wherever you find it in use, the HIAB Sea Crane does an unmatched job. High lifting capacity, durable protection against corrosion and long lifetime. With precise load handling, extra capacity at reduced reach, optional total overload protection, with or without SPACE system, little storage space required when folding the crane, tremendous work area coverage.
All thanks to the small parking place requirement and exceptional freedom of
movement provided by the knuckle boom principle. The HIAB Sea Crane is outstanding
in comparison with outdated Stiff Booms and Derricks. Through the past, now
and in the future.
Designer convenient outfitting
HIAB Sea Cranes have capacities form 8 ton meters up to 40 ton meters. Special and other models are developed based on requests. Winches and hydraulic power packs and remote controls are all in the HIAB program, matched to the cranes. Ship Designer's HIAB Sea Crane Handbook is available in printed or in electronic format.

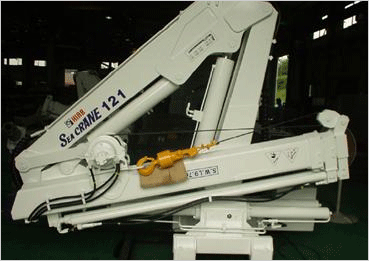

|Specification||HIAB 121-1||HIAB 121-2||HIAB 121-3|
|Hydraulic boom extension||2.18m||4.36m||6.54m|
|Lifting height above installation level||9.2m||11.5m||13.7m|
|Recommended oil flow||40 l / min||40 l / min||40 l / min|
|Power needed at rec.oil flow||16kw||16kw||16kw|
|Working pressure||240 bar||240 bar||240 bar|
|Maximum working slope||7deg in full load capacity|
|Slewing torque, gross||31.6KNm||31.6KNm||31.6KNm|
|Slewing speed||8 deg/sec||8 deg/sec||8 deg/sec|
|Height in folded position||2,500mm||2,500mm||2,500mm|
|Width in folded position||3,005mm||3,150mm||3,360mm|
Installation width needed
|Weight : Crane in standard version||2,050kg||2,200kg||2,350kg|
